Selmer 807 Gypsy Jazz Template
Selmer 807 Gypsy Jazz Template
The Selmer Maccaferri guitar is a legendary instrument known for its role in shaping the "gypsy jazz" sound, most famously associated with Django Reinhardt.
The Selmer 807 guitar, designed by François Charle and often called the "Petite Bouche" or "small mouth" guitar due to its distinctive oval soundhole, it features a heat-pressed "pliage" (pleat or bend) under the bridge, which enhances volume and responsiveness and which, along with a 670mm scale length gives the Selmer 807 its renowned loud, bright tone and quick attack.
The Selmer 807 is sometimes compared to Django Reinhardt’s famous Selmer 503, though they have subtle structural differences, such as the bracing configuration. Our templates are designed taking account of the original François Charle design and additional information from Michael Collins excellent book "Building a Selmer Maccaferri Guitar". One aspect of the original is the complex neck/headstock mortice and tenon joint. We have provided the tenon extension on the headstock template however we have not attempted to template the complete joint due to its complexity. Furthermore having built a few ourselves, we believe that a conventional scarf joint works perfectly well.

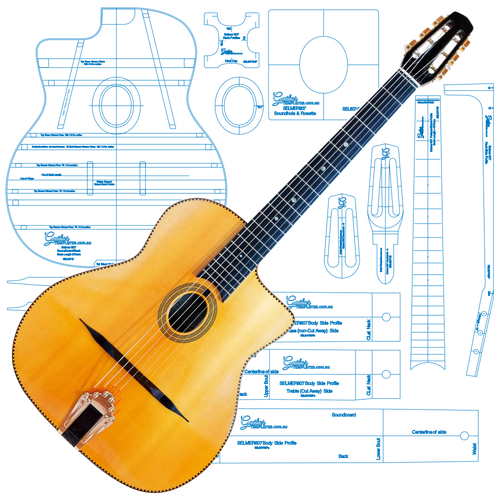

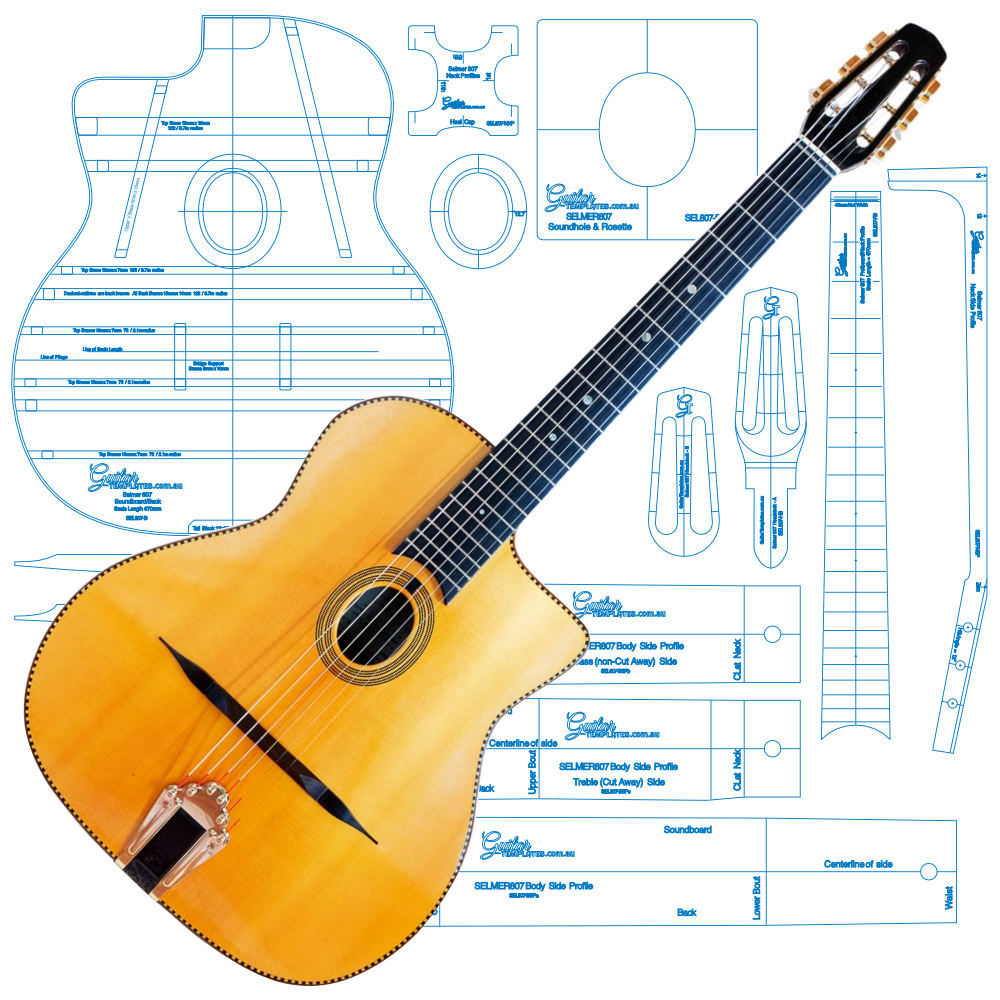

One of our most comprehensive / complex template sets. Our version of the Selmer 807 Gypsy Jazz comes with 15 templates including:
- Soundboard / Body Template
- Body braces x 2 (7' and 12' radius)
- Headstock 2 piece set for the front and rear and also the front face string ramps.
- Bridge 2 piece set
- Body Side Profile - 3 piece set
- Soundhole - 2 pieces to allow routng of the small oval soundhole and a matching 1/2" wide rosette channel.
- Neck Side Profile
- Fretboard
- Neck Profile Shaping Template
Dimensional Details:
- Scale Length = 26.4" 670mm
- Neck Joins @13.7 Fret
- Nut width = 45mm
- Width @ 12th Fret = 55mm
- SS at saddle = 50mm
- Body Length = 469.6mm
- Lower Boput = 399mm
- Upper Bout = 290mm
- Waist = 258mm
- Body Side Length = 739.4mm
- Depth at Tail = 98.4mm (includes top and bottom)
- Depth at Neck = 87.3mm (includes top and bottom)
The product on this page is the complete build set, however, each of the templates sets can be purchased seperately via the following links
- Soundboard / Body Template (inc. Body Braces x 2)
- Headstock 2 piece set
- Bridge 2 pieces set
- Body Side Profile - 3 piece set
- Soundhole - 2 pieces
- Neck Side Profile
- Fretboard
- Neck Profile Shaping Template
Ordering a template? Here are two short videos that will help when you receive the templates.
How to remove the paper protection layer from your template
Which way is the right way to use your template
| SKU | T-SEL807-BS |
| Brand | Guitar Templates |
| Shipping Weight | 5.0000kg |
| Shipping Width | 0.500m |
| Shipping Height | 0.070m |
| Shipping Length | 0.650m |
| Shipping Cubic | 0.022750000m3 |
Be The First To Review This Product!
Help other Guitar Templates users shop smarter by writing reviews for products you have purchased.
Sale Price:
$449.00
RRP $499.94
YOU SAVE $50.94 (10%)
