LP Junior Double Cut Style Template
Are you looking to build a LP Junior Double Cut-Away style guitar? Building a guitar may be easier than you think. This template set is based on a double cut-away LP Junior guitar with a set neck, 24.75" scale length, single P90 pickup and is available with either a
- 22-fret neck with a 43mm nut width.
- 24-fret neck with a 43mm nut width.
Note that the fretboard template includes fret marker locations that can be used for both the front and side dot locations.
The build set includes the following templates:
- Body Front incl Pickup route, control locations and tune-o-matic bridge and stop tail post locations.
- Fretboard with front/side fret marker locations
- Neck Pocket (including two 2.5deg neck angle wedges)

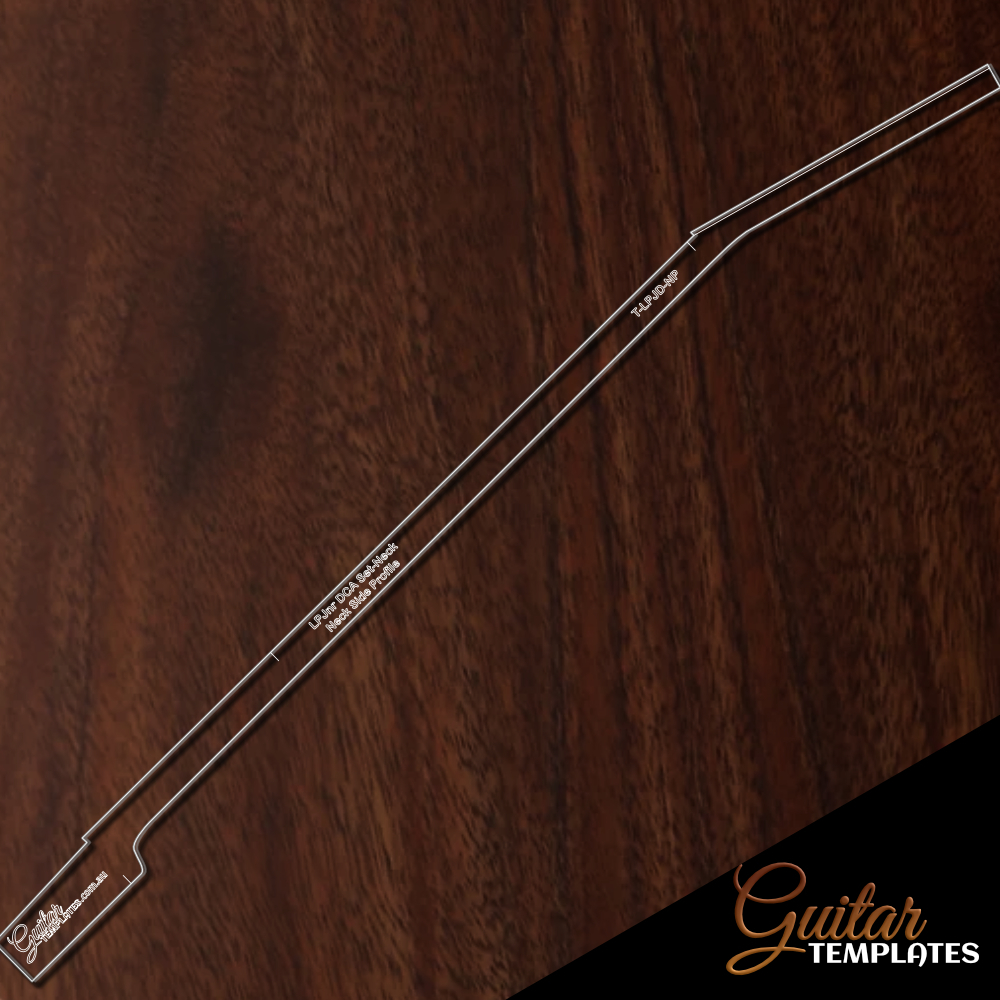

- Neck Side Profile
Items available separately are the Body template and a Neck Set which includes the Neck, Neck side profile and the Neck pocket with 2 neck angle wedges. If you are looking for other items, the headstock is available in the Components/Electric Headstocks collection and we have a pickguard/scratchplate template available in the Components/Pickguards collection. And if you are looking for an alternative pick-up arangement consider our separate pickup routing templates.
These templates, like all our guitar templates, are made of 6mm clear acrylic, precision laser cut with router paths, etch lines, and keyholes for accurate measurements on your build.
Note: The dimensions of templates on this site are often created for accuracy based on original models however this is not the case in some templates and therefore we do not guarantee these templates to work with original parts. We also chose to design elements to be compatible across multiple models which means not all parts are exactly the same dimensions as the original guitar the templates were based on.
Ordering a template? Here are two short videos that will help when you receive the templates.
How to remove the paper protection layer from your template
Which way is the right way to use your template
